Home > Products > PVC FOAM BOARD > rockwool sandwich board production line

rockwool sandwich board production line

  • rockwool sandwich board production line
  • rockwool sandwich board production line
  • rockwool sandwich board production line
  • rockwool sandwich board production line

rockwool sandwich board production line

    Unit Price: USD 230000.00 - 480000.00 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days
    Packaging: as customer requirem
    Productivity: 2-8m/min
    Brand: ZHONGTUO
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 10set/month
    Certificate: CE, ISO9001

Basic Info

Model No.: ZT-005-15

Product Description

rockwool sandwich board production line


Rockwool sandwich board production line including unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.


rockwool sandwich board production line production Process:

rockwool sandwich panel roll forming machine

Details of rockwool sandwich board production line :


Sandwich Panel machine


Sandwich Roof Roll Forming machine


rockwool sandwich board production line

Sandwich Panel machine

Parameters of sandwich panel roll forming machine :


Raw material





  • Material:Colored steel
  • Coil thickness:0.4~0.6mm
  • Coil weight:Max 5T
  • Coil width: Max 1250mm
  • Coil inner diameter:ø508mm
  • Coil outer diameter:ø1100mm

Un-coiler



  • Bear weight:5T
  • Mandrel expansion :465 – 515 mm

Laminating machine


  • PVC coil outer diameter:300mm
  • PVC coil inner diameter:70-82mm
  • Maximum coil width:1250mm

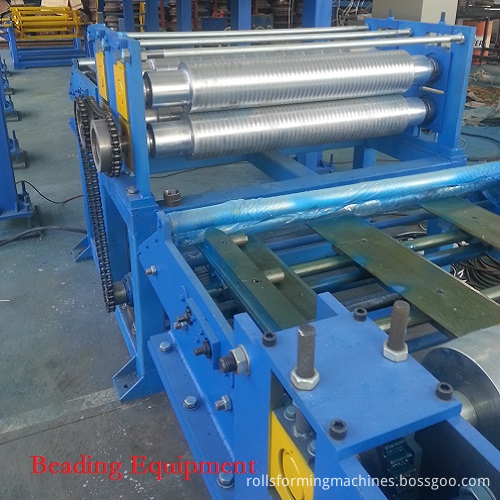

Beading Equipment



  • Speed:10m/min
  • Power:2.2kw or according to the profile
  • Diameter of roller:according to the profile
  • Power supply:motor
  • Material of roller:l 40Cr quenched and tempered, chrome

Roll forming



  • Frame:Cantilever structure
  • Speed:10m/min
  • Power:4kw up, 7.5kw down
  • Shaft diameter:50 mm
  • Distance roller head:350mm
  • Rollers: 11 up, 18 down

Rock wool delivery device


  • Motor Power:2*1.5Kw
  • Speed:8m/min
  • The maximum transport width:1200mm
  • Dispensing Systems
  • Effective volume:150L
  • Unit motor power:10KW


Roll forming machine


  • Length:10mm
  • Width:1200mm
  • Lifting speed:200mm/min
  • Drive motor power:2.2Kw*4
  • Lifting motor power:1.5Kw*4
  • Speed:10 m/min


Cutting part


  • Cutting motor power:7.5Kw
  • Lateral movement motor power:1.1 KW
  • Traversing speed:150 mm/s
  • Cutting width:1300 mm
  • Cutting error:±2mm
